The recommended way to use JDLG is to put it on a central server.

1. You need a web server. This is not only strongly recommended for the JDLG but makes also a lot of sense for distributing documentation in the Intranet.
   We recommend to use the Apache web server which is not only the most common used one but also available for free and almost all platforms. Conveniently it is included on the Eloquence CD-ROM media and or can be downloaded from the Eloquence FTP server.

2. We recommend to use the Java WebStart(TM) utility to launch the JDLG from a web page. This has the benefit that there is a central location where application specific files which are required by the client side (such as icons or online documentation) need to be provided and are accessible without configuring each client system.

3. The web server could also be used to distribute the Java runtime in the Intranet. Simply download a copy from the Internet (the B.07.00 Eloquence CD-ROM media will also include a copy), place them in a directory accessible from the web server and you are done.

4. Finally, a web server should be considered apart of the common infrastructure in a network. You are likely to find additional ways of making good use of it besides JDLG.

For this reason the installation of the Java Runtime Envionment (JRE) 1.3.1_04 is required, or when 1.3.1_04 is not available for your plattform, 1.2.2. In addition the Java WebStart(TM) utilty is required to launch the Eloquence Java based Dialog System from a web browser. Other versions or implementations of the Java runtime have not been tested.

The Eloquence Java based dialog system can be executed in different ways:

1. It can run as an Application started from the command line or the desktop (by a shortcut)
2. It can be launched with the WebStart tool through a web link.

The Java runtime is available for download at the following location:

• http://java.sun.com/products/archive/j2se/1.3.1_04/index.html (JRE 1.3.1_04)
• http://java.sun.com/products/jdk/1.2/jre (JRE 1.2.2)

• http://java.sun.com/products/javawebstart (Version 1.0.1_02)

• http://java.sun.com/products/plugin/1.3/download/all.html (JRE 1.3.1 with Netscape plugin)
• http://java.sun.com/products/plugin/1.2/download/all.html (JRE 1.2.2 with Netscape plugin)

Installation on the Windows platform

1. Download the 1.3.1_04 version of the JRE from the specified location.
2. Install it on the machine.
3. Reboot the machine.
4. Download the WebStart package from the specified location (ca. 700 kB).
5. Execute the javaws-1_0_1_02-win-int.exe. It installs the package and configures your browser.

Installation on the Linux platform

1. Java Runtime System
   1. Download the Java runtime from the specified location j2re-1_3_1_04-linux.bin (ca. 15 MB).
   2. Move the archive file to /usr/local/java and extract the archive. The result is the subdirectory jre1.3.1_04 which contains the Java VM in the bin directory.
      Please note that you need a recent Linux 2.2 kernel and a glibc2.1 or glibc2.2 based system.
   3. Append /usr/local/java/jre1.3.1_04/bin to the PATH environment variable system wide in the /etc/profile file. Define the JAVA_HOME variable with the directory of the JRE like /usr/local/java/jre1.3.1_04, too.

2. WebStart
   1. Download the package from the specified location javaws-1_0_1_02-linux-int.zip (ca. 1MB).
   2. Move to the users home directory and unpack the zip archive with the command unzip javaws-1_0_1-linux-int.zip
   3. Execute the install.sh shell script.

Verifying the installation

java version "1.3.1_04"
Java(TM) 2 Runtime Environment, Standard Edition (build 1.3.1_04-b02)
Java HotSpot(TM) Client VM (build 1.3.1_04-b02, mixed mode)

The WebStart tool can be started on Windows through the short cut on the desktop or the Program menu.

On Linux the WebStart tool can be executed with the command
$HOME/javaws/javaws &

After the installation of the Java runtime has been completed you may want to try the example application (please refer to the separate document).

$> ulimit -s 2048

java -jar jdlgS.jar

where jdlgS.jar is the name of the JDLG System JAR archive.

Under Windows operating systems it is also possible to activate JDLG with a double mouse click onto the JAR file. Then it is started without any options.

Another way to start JDLG under the Windows platform is using the command javaw instead of java which is also located in the JRE bin directory. The difference is that the first command does not open a MS-DOS Box Window which might be undesirable.

After you've started the system its console apears onto your screen.

Java WebStart provides the ability to use the web browser to launch JDLG as an application which is no longer bound to it once it is running. The difference to the applet solution is that the application runs in a separate virtual machine outside the browser and web navigation or browser crashes do not longer affect the dialog system.

A detailed description of the Java WebStart tool and its configuration can be found at the location
http://java.sun.com/products/javawebstart/.

In order to use WebStart the following steps must be performed

1. Configure the MIME type of the JNLP file to the web server as described below.
2. Place the JDLG files along with the configuration files in a directory which is reachable with your web server.
3. Modify the jdlg.jnlp configuration file as described below.
4. If logging is required, modify the JEloq.cfg configuration file as described below.
5. If JDLG should be able to start Eloquence applications on the server you need to create a configuration to describe the available Eloquence applications as described below.

Configuring the Web Server for WebStart

For the Apache web server the line

AddType application/x-java-jnlp-file    .jnlp

To distribute the dialog system in your Intranet or over the Internet the following files are needed and should be placed in a directory reachable with your web server:

• The jdlg.jnlp file which contains the information used by the WebStart utility.
• The jdlgS.jar file which contains the JDLG class files.
• The JEloq.cfg file. This is optional and contains configuration settings for the dialog system.
• The Application.cfg file. This file is used to provide a list of available applications to the JDLG client. This file is optional (please refer to section Starting Eloquence Applications from JDLG for details).

The JNLP file has the following content:

<?xml version="1.0"?>

<jnlp codebase="http://yourwebserver/jdlgdir"
         href="jdlg.jnlp">

  <information>
    <title>Eloquence Java based Dialog System</title>
    <vendor>Marxmeier Software AG</vendor>
    <homepage href="http://www.marxmeier.com"/>
    <description>
      Eloquence Java based Dialog Server
    </description>
    <description kind="short">
      Java based Dialog Server
    </description>
    <icon href="eqlogo-150.gif"/>
  </information>

  <security>
    <all-permissions/>
  </security>

  <resources>

    <j2se version="1.3 1.2"/>

    <jar href="jdlgS.jar" main="true"/>

    <property name="eloquence.config.url"
        value="http://yourwebserver/appldir/JEloq.cfg"/>
    <property name="eloquence.config.helpbaseurl"
        value="http://yourwebserver/docbasedir"/>

  </resources>

  <application-desc/>

</jnlp>

You can find an example file jdlg.jnlp in the examples/config directory. The elements have the following meaning:

• The codebase attribute in the jnlp element should point to the directory on your Web Server which contains the files. This needs to be changed to the appropriate value for your site.

• The information describes the JDLG application and should be left untouched.

• The security tag allows the dialog system to open the graphic device. WebStart will ask you the first time if you'll trust the application. Please do not change this element otherwise the JDLG will not work correctly.

• The j2se element allows the system to be executed in a Java Runtime Environment of version 1.3 or 1.2.

• The jar element tells the system which JAR archive should be downloaded by the WebStart client and provide the name of the JDLG archive which is located in the same directory as the JNLP file. Please note that the path in the codebase attribute and the path in the href attribute are implicietly concatinated with a '/' between and must provide the absolute URL to the JAR archive.
  The main attributes says that the JAR contains an entry point class and should be left untouched.

• The property element defines system properties which are passed to the virtual machine. Here the URL property is set which is used to locate the dialog system configuration file. This value must be changed to the appropriate value for your site if you want to have a config file active.

• The application-desc element says that we want to start an application.

Please modify or create the JNLP file as described above.

After the JNLP MIME type has been added to the web server and the JNLP file has been created a web browser can be used to launch the JDLG application. Use an absolute URL to the JNLP file like

http://yourhost/jdlgdir/jdlg.jnlp.

The browser will start the WebStart client (because the web server responds with the JNLP MIME type) and WebStart will then load the JAR archive and start the execution of the dialog system.

Please note: If your Browser uses a Proxy in its configuration you need to check the WebStart Proxy configuration too. Doing this, launch the WebStart Application manager from the program start menu (Windows) or from the local $HOME/javaws/javaws directory(Linux). Go to the Program menu and open the preference dialog. On the General tabulator you'll find the setting for the proxy configuration. For details please consult the WebStart documentation which is in the installation directory.

This resulted in the fact that no original runsrv process could run in parallel with JDLG. As a result of this circumstance and that some features of the runsrv server are not implemented in JDLG e.g. the DDE commands under Windows platforms had caused problems for existing Eloquence applications.

To resolve these problems we had implemented a new connection mechanism in the current release which is also available in eloqcore A.06.31 and above.

A.06.31 Connections

DLG SET ".driver", "yourhost"

DLG SET ".driver", "dlg://yourhost"

The first statement looks very similar to the old style. Please note the essential difference that the hostname is no longer prefixed with the @ sign!
The second and third form is our new URI syntax to identify the driver. The dlg string defines that we want to use the new mechanism. After the two slashes the hostname to which we want to connect is defined.

The JDLG system listens to the default dlgsrv port - which has the number 8011 - and waits for new connections of eloqcore processes. You do not need to configure anything on the JDLG side because this is the new default behaviour. Instead you need to change your

DLG SET ".driver", "@yourhost"

DLG SET ".driver", "yourhost"

(The A.06.31 release notes show you an other way to change your driver statement.).

A.06.30 Connections

The (re)activation of the minimal runsrv server inside JDLG could be done with the setting of a property. The simplest form is the usage of a system property on the command line during the start up time of JDLG as shown below:

java -Deloquence.config.runsrv.port=8010 -jar jdlgS.jar

After starting JDLG with this option the eloqcore processes can connect to JDLG in the well known manner.

Please note: The minimal RUNSRV implementation might be removed in the future.

When executing as an application it can be specified on the command line, when running in the WebStart context it can be specified as a parameter for an URL in the JNLP file as shown above.

The config file is a text file which contains the property and value pairs (see at the bottom of this document for a list of valid properties). All text after a # character is considered a comment.

For example:

# Sample config file
eloquence.config.defaultfont.name = DialogInput
eloquence.config.defaultfont.size = 12

In this example, a default DialogInput font with a 12pt size is specified.

The example below activates some debug options and could be used for trouble shooting. When running as an application the log is written to the file C:/temp/jdlg.log.

# Sample config file

# Write debug log to a file
eloquence.config.log = C:/temp/jdlg.log

# Activate the option below to enable output to Java Console.
#eloquence.config.trace = true

# Enable tracing of network messages in the dialog protocol
eloquence.trace.com.eloquence.services.protocols.Dialog.trace = true

# Enable tracing of events and rule processing
#eloquence.trace.com.eloquence.services.jdlg.controls.trace = true

# Enable tracing of the controls manager
#eloquence.trace.com.eloquence.services.jdlg.trace = true

java  -Deloquence.config.file=JEloq.cfg -jar jdlgS.jar

where -Deloquence.config.file=JEloq.cfg specifies to use the file JEloq.cfg as a parameter file. The file JEloq.cfg can be either a relative or an absolute path.

Please note: The order of the command line parameters are significant. If the -D option whould appear after the -jar jdlgS.jar options the virtual machine would not use it for itself. It would send it to the application as an argument. As the result the config file would not be read.

Using a config file in the WebStart context

The Option Reference

Globals

eloquence.config.file

Example value

/a/path/to/a/config/file.cfg

It is a path to a config file which contains more options. If you use a relative path then the path starts in the working directory of the process.

eloquence.config.url

Example value

http://www.yourserver.net/JEloq.cfg

It is an URL to a file on a web server which contains more configurations. You can use it in the application environment but it is mostly useful in the WebStart environment.

eloquence.config.sessions

Example value

http://www.yourserver.net/Applications.cfg

It is an URL to a file on a web server. It contains information about Applications which can be started remotely with the dialog system.

eloquence.config.log

Example value

/a/path/to/a/log/file.log

This is a path to a file where tracing messages are written in.

eloquence.config.lookandfeel

Value

system | java

This property allows the usage of another look and feel as the platform defines. The default is the system value which means that under Linux the Java L&F and under Windows the native Windows L&F is in use. Under Windows the value java will set the Java L&F.

theme

Value

A string which is an URL and points to a theme property file.

This property allows to point to file which contains color and property values. These values configures the appearance of the JDLG application if the java look and feel is active. You can find an example file in the examples/config directory. Please note: this only works with the java look and feel!

eloquence.config.logoicon

Example value

http://your.server.net/images/logo-20.gif

This property sets the icon which appears in all windows on the upper left corner and in the system task bar. Please note if you set this here the system frames like the console window, the session window or the active dialogs window will get this icon too. So if you want to have on icon for the entire system you should configure it in the JEloq.cfg file. The Dialog.logoicon property overlays this value.

eloquence.config.trace

Value

true | false

If it is set to true the log stream will not be associated with the log property value. Instead the system error stream will be used. This option overlays the log option!

eloquence.config.syswin

Value

iconified | deiconified

deiconified is the default value it means that the system window starts deiconified. As a result you can see it as a window on your desktop. In the other case the window will be seen in the program bar iconified.

eloquence.config.defaultfont.name

Values

Either a logical font name (Serif, SansSerif, Monospaced, Dialog or DialogInput) or a platform specific font such as Courier or Helvetica (which may not be present on all client systems).

This font will be used for all controls during execution. Default is DialogInput

eloquence.config.defaultfont.size

Value

positive integer, e.g. 14 for 14pt.

It is the point size of the font which will be used during the execution time. The default is 12pt.

eloquence.config.dlg.port

Value

positive integer e.g. 8011.

This is the port on which the new dlg protocol server listens to. The default is 8011. The old runsrv connection mechanism will be replaced with this connection protocol from Eloquence A.06.31 on, please see above. Per default the dlg connection protocol is activated and the runsrv protocol is deactivated. To run a runsrv in parallel set a port for it with a command line property or with a property in your configuration file.

eloquence.config.runsrv.port

Value

positive integer e.g. 8010.

This is the port on which our minimal Runsrv server listens to. The default is 8010. Please note that you cannot execute a second RUNSRV process on the same port on the same machine.

Tracing

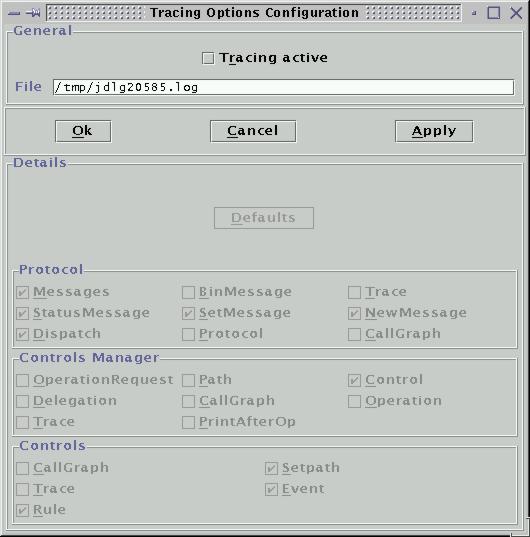

Tracing Configuration Dialog

To simplify the tracing process we had implemented a configuration dialog in the current version:

After you have started the JDLG System you can run the tracing configuration task by activating the Tracing command in the Program menu. A Dialog as show to the right appears.

The most important elements in the dialog are the Checkbox with the title Tracing active, the Edittext field named with File, the Ok, Cancel and Apply buttons and the Default Button.

You can activate the tracing by changing the state of the Checkbox to true which is indicated through a tick and confirming it with a click onto the Apply Button. Then the tracing sub system writes to the file displayed in the File Textfield. The dialog will not be disposed and you can reuse it to stop the tracing. Doing this change the Checkboxes state and confirm it again.
The Ok Button confirms your changes as the Apply Button does and closes the dialog. The Cancel Button left the current state of the tracing system untouched and closes the dialog.

As you have observed, setting the Checkbox allowes the user to modify or use the elements in the Details area of the dialog. It is devided into four parts. The first which holds the Default Button and the three Panels for the different sub systems of the tracing system.
The Default Button sets the options of all sub systems to a state which is helpful for the Eloquence support team to find out what kind of problem you might have. Please use these settings if you report a problem to us and use it as a start point for your own tracing work. The meaning of each option is described below in the Tracing Options Reference, please consult it before you will start with your own experiments.

In the following paragraphs we will give you an introduction of the tracing messages layout and show you when and how you can use the tracing function.

Observing a DLG LOAD Operation

A single LOAD command results in hundres or thousands of NEW and SET operations over the protocol. Each will be acknowledged by a STATUS Message if the program works in the synchron mode.

In the tracing file you can see each operation and its status response if the Protocol sub system is activated. For the described messages the Checkbox for NewMessage, SetMessage, StatusMessage, Messages and Trace needs to be in a marked state in the Panel.

Here an example for an initial new operation for a dialog:

- - - trace at 2001-07-02 12:35:04.523
      in thread lxsrv.marxmeier.com/194.64.71.81:2138 prio=5 - - -
  ProtocolMessage
  DialogClassic.run
    ErrorCode=DLG_OK
    MessageCode=DMDRV_NEW
    Path=window
    Type=dialog

Each tracing message starts with a line which contains the timestamp when it was created. It also contains the session name (here lxsrv.marxmeier.com) to which it corresponds to. The information is the same which you can find in the Session dialog.

The next three lines are not necessary. More important is the fourth, it says which message we got. Here the NEW command. The fifth line indicates the name of the Eloquence control and the sixth defines the requested type.
In dlg file syntax it is the same as:

dialog window {
..
}

The response of such a request will be a status message with the layout:

- - - trace at 2001-07-02 12:35:04.53
      in thread lxsrv.marxmeier.com/194.64.71.81:2138 prio=5 - - -
  ProtocolMessage
  DialogClassic.run
    ErrorCode=DLG_OK
    MessageCode=DMDRV_STATUS
    StatusCode=DLG_OK

The second last line contains the message type STATUS the last shows the error code which shall be DLG_OK. If it has any other value, it has a name which you can find in our error code list prefixed with a DLG_ string like DLG_DUPL for a duplicated control. Please consult this document for further error explanations.

As you might have observed there is no path in the status response message. This causes a specific procedure to find corresponding messages:

• Search for a NEW operation and remember the session name.
• Search for the next status message which has the same session name as the NEW operation has.
• Take a look to the StatusCode field which says if the operation had been executed correctly or not.

Apply the same procedure to find out if a SET Messages as been worked or not. It has the following form:

- - - trace at 2001-07-02 12:35:04.535
      in thread lxsrv.marxmeier.com/194.64.71.81:2138 prio=5 - - -
  ProtocolMessage
  DialogClassic.run
    ErrorCode=DLG_OK
    MessageCode=DMDRV_SET
    Path=window.bgimage
    Value=[Type=STRING, Value=http://lxsrv/nova/image/bg.jpg]

The MessageCode line indicates that we're having a SET operation. The second last line describes the path to the control and its attribute. The last line contains the value to which the attribute shall be set. In our example the command sets the .bgimage attribute of the window dialog to the string http://lxsrv/nova/image/bg.jpg. This is equivalent to the second line of the following dlg file:

dialog window {
  .bgimage = "http://lxsrv/nova/image/bg.jpg"
  ...
}

A corresponding status message will appear after the SET message in the log file and has the same form as desribed above in the NEW command section.

If you want to track different DLG LOAD commands you can apply the following procedure for generating appropriate log files:

1. Start JDLG and run the tracing configuration dialog.
2. Start eloqcore and connect to JDLG.
3. Set the filename input field to a desciptive name.
4. Activate the tracing.
5. Execute the DLG LOAD command.
6. Stop the tracing.

Repeat from 3 to 6 for each LOAD operation you like to track.

Observe a problem in a deep level of the program.

Sometimes you want to find out what is going wrong in a Dialog which is called and shown in a deep level of the programs execution path. It is not a good idea start tracing from the beginning of the program because this produces a lot of message you do not want to see. They will confuse you and do not help finding the problem.

To avoid this activate the tracing as follows:

1. Start JDLG.
2. Start your application.
3. Go to the point in the execution path before the operation you want to trace.
4. Activate the tracing.
5. Reproduce the problem in the dialog.
6. Stop the tracing.

If you are working in that way you will get tracing log files which are smaller and more informative. They concentrate the information of the problem and do not overwhelm you with unneccessary data.

A last a hint to log files if you send them to anybody over the Internet: Please compress them with ZIP or GZIP if they had become bigger than 100 kBytes. The SysAdmin community will thank you that.

Tracing Options Reference

Each of the shown option in the tracing dialog might have a property value in a configuration file which is used to set up tracing with it. The name of the option in the dialog is the same as the last part of the properties name. The value of a property might have the state true or false. Where the first turns it on and the last turns it of. The list below explains the meaning of each option.

trace

Setting this property as a command line property all default tracing options will be actived.

eloquence.trace.com.eloquence.services.jdlg.trace

It is the main switch for the Controls Manager module. If it is false all options with the same prefix are off too.

eloquence.trace.com.eloquence.services.jdlg.control

Tells what the system does with the control. When it will be created or inserted to a parent node for example.

eloquence.trace.com.eloquence.services.jdlg.printAfterOp

This prints out the state of all controls after an operation. Very expensive!

eloquence.trace.com.eloquence.services.jdlg.path

Shows how the system resolves a path. Expensive.

eloquence.trace.com.eloquence.services.jdlg.operation

Shows which operation in the Controls Manager was requested.

eloquence.trace.com.eloquence.services.jdlg.controls.trace

It is the main flag for the input events of the Eloquence controls. If it is false all options with the same prefix are off too.

eloquence.trace.com.eloquence.services.jdlg.controls.event

Shows which control got what kind of event.

eloquence.trace.com.eloquence.services.jdlg.controls.rule

Shows which rule was executed.

eloquence.trace.com.eloquence.services.jdlg.controls.setpath

Shows which control gets the focus after executing the DLG DO or DLG DRAW command.

eloquence.trace.com.eloquence.services.protocols.Dialog.trace

Shows the behavior of the dialog protocol module. If it is false all options with the same prefix are off too.

eloquence.trace.com.eloquence.services.protocols.Dialog.protocol

Shows the protocols state.

eloquence.trace.com.eloquence.services.protocols.Dialog.messages

Is a switch which disables (value is false) or enables the next three options generally.

eloquence.trace.com.eloquence.services.protocols.Dialog.newMessage

Shows every new message in the system. Corresponds to DLG NEW.

eloquence.trace.com.eloquence.services.protocols.Dialog.setMessage

Shows every set operation in the system. Corresponds to DLG SET.

eloquence.trace.com.eloquence.services.protocols.Dialog.statusMessage

Shows every operation status message. This occures not during async mode.

eloquence.trace.com.eloquence.services.protocols.Dialog.dispatch

Shows when the protocol gives the execution thread to the Controls Manager.

There are two ways to activate the Help Sub System which both result in an URL string. This string is then be send to the web browser which will load the requested document. The description how the string will be created follows in the next two paragraphs.

The .rule=-1 Activation

For Example:

dialog main
{
  .help = "/main"

  GroupBox first {

    .help = "/firstgroup.html"

    PushButton run {

      .help = "#runbutton"
      .rule = -1
    }
  }
}

Afterwards the values of the Application.helpbaseurl and System.helpbaseurl attributes are prepended to create the final help document address. The Application object is session specific and has no default value for the attribute. The System object exists during the entire execution time of JDLG and is defined in the configuration file.

Assuming the Application.helpbaseurl is defined as /CalcAppl and System.helpbaseurl is defined as http://your.server.net the final help document address is http://your.server.net/CalcAppl/main/firstgroup.html#runbutton.

The DLG HELP Command Activation

DLG HELP "helptext.html"

Assuming the Application.helpbaseurl is defined as /CalcAppl and System.helpbaseurl is defined as http://your.server.net the final help document address is http://your.server.net/CalcAppl/helptext.html.

The Browser Activation

If JDLG was started in the WebStart environment the activation will be delegated to the browser directly on non Windows platforms. In this case nothing needs to be configured.

If JDLG runs as an appplication (or on Windows under WebStart) it creates a process with a command line string which needs to be configured because it's platform specific.
For this task the eloquence.help.cmdpre and eloquence.help.cmdpost properties in the config file are used.

Windows

Name	Value
eloquence.help.cmdpre	rundll32 url.dll,FileProtocolHandler
eloquence.help.cmdpost

The rundll32 command sends the URL to the function FileProtocolHandler in the url.dll library. On Windows 98, NT, 2000 and XP this invokes the default browser. Known problems like MS-DOS Windows appearances or hang ups with the old approach do not occure now.

Linux

Name	Meaning
eloquence.help.cmdpre	netscape -remote openURL(
eloquence.help.cmdpost	)

The command string which is used by JDLG has the form netscape -remote openURL(http://your.server.net/CalcAppl/helptag.html). The meaning is that a Communicator will present the URL in the last active window.
Important under this operating system is that the Communicator process is running before JDLG sends the first request to it. Otherwise nothing will happen onto your end users screen. The Communicator must also be reachable via the PATH environment variable of the Java VM which is used for JDLG.

Direct Activation of an HTTP Request

  DLG SET "Application.browser","http://www.marxmeier.com";Rc

would introduce JDLG to send the link http://www.marxmeier.com to the browser which loads and displays it for us.

The configuration of the systemwide Help Path Base

The usage of this attribute is the definition of the absolute starting point for the help documentation. You can do with the property in the configuration file:

Name	Meaning
eloquence.config.helpbaseurl	An URL (Prefix)String for the absolute base of the help documentation files e.g. http://onlinedoc.server.net/users/documentation.

The Eloquence applications are configured in a separeate file which is specified with the eloquence.config.sessions property. The application configuration file defines settings for each application as shown in the example below.

#
# The first application
#
catalogApp.name          = Catalog Application
catalogApp.icon          = http://yourserver/images/catalog.gif
catalogApp.server        = yourserver
catalogApp.login         = TheUser
catalogApp.startdir      = /opt/catalogapp
catalogApp.parameter.0   = -bg
catalogApp.parameter.1   = -log
catalogApp.parameter.2   = /tmp/catalog.log
catalogApp.parameter.3   = Catalog
catalogApp.parameter.4   = -dlg
catalogApp.parameter.5   = $host:$port
catalogApp.environment.0 = LOGINNAME=$login
#
# The second application
#
catalogDebug.name          = Catalog Application (Debug)
catalogDebug.icon          = http://yourserver/images/catalog.gif
catalogDebug.server        = yourserver
catalogDebug.serverport    = 8022
catalagDebug.debugmode     = true
catalogDebug.startdir      = /opt/catalogappdebug
catalogDebug.parameter.0   = -d*3
catalogDebug.parameter.1   = -bg
catalogDebug.parameter.2   = -t3
catalogDebug.parameter.3   = -log
catalogDebug.parameter.4   = /tmp/catalogDebug.log
catalogDebug.parameter.5   = Catalog
catalogDebug.environment.0 = DRIVER=$host

The first part of a property key must be unique for each application. You can use any value for it. The second part of a property key is a parameter name which is then used by the dialog system.

Properties

Using the mechanism

The first step is the user management of the eloqsd server. Please refer to its documentation how to set up the eloqsd.cfg and eloqsd.user file.

In the second step the dialog system needs to be configurated. For this task you need to write a configuration file (e.g. Applications.cfg) as described above. At the systems start up time it reads the eloquence.config.sessions property of the JEloq.cfg file which points with an URL to the Applications.cfg file. After the Applications.cfg file was read the known applications are listed in the system dialog.

After these configurations a double click on a line in the application list will start it.

Using the macros

You want to know who has been started the application. Passing this information to the eloqcore program works as follows:

Define in the Application.cfg file an environment variable which holds the value e.g.

...
catalogApp.environment.0 = LOGINNAME=$login
...

After eloqsd has started the program you can use the GETENV() function to resolve the data of the variable:

2500 Username$=GETENV("LOGINNAME");
...

3500 PRINT "Welcome "&Username$

Another example is to find out which port JDLG uses to connect to it if it uses another port then the default one:

...
catalogApp.parameter.0 = -dlg
catalogApp.parameter.1 = $host:$port
...

then eloqsd launches the eloqcore process with the given command line and connects to the correct host and port where JDLG is running.
